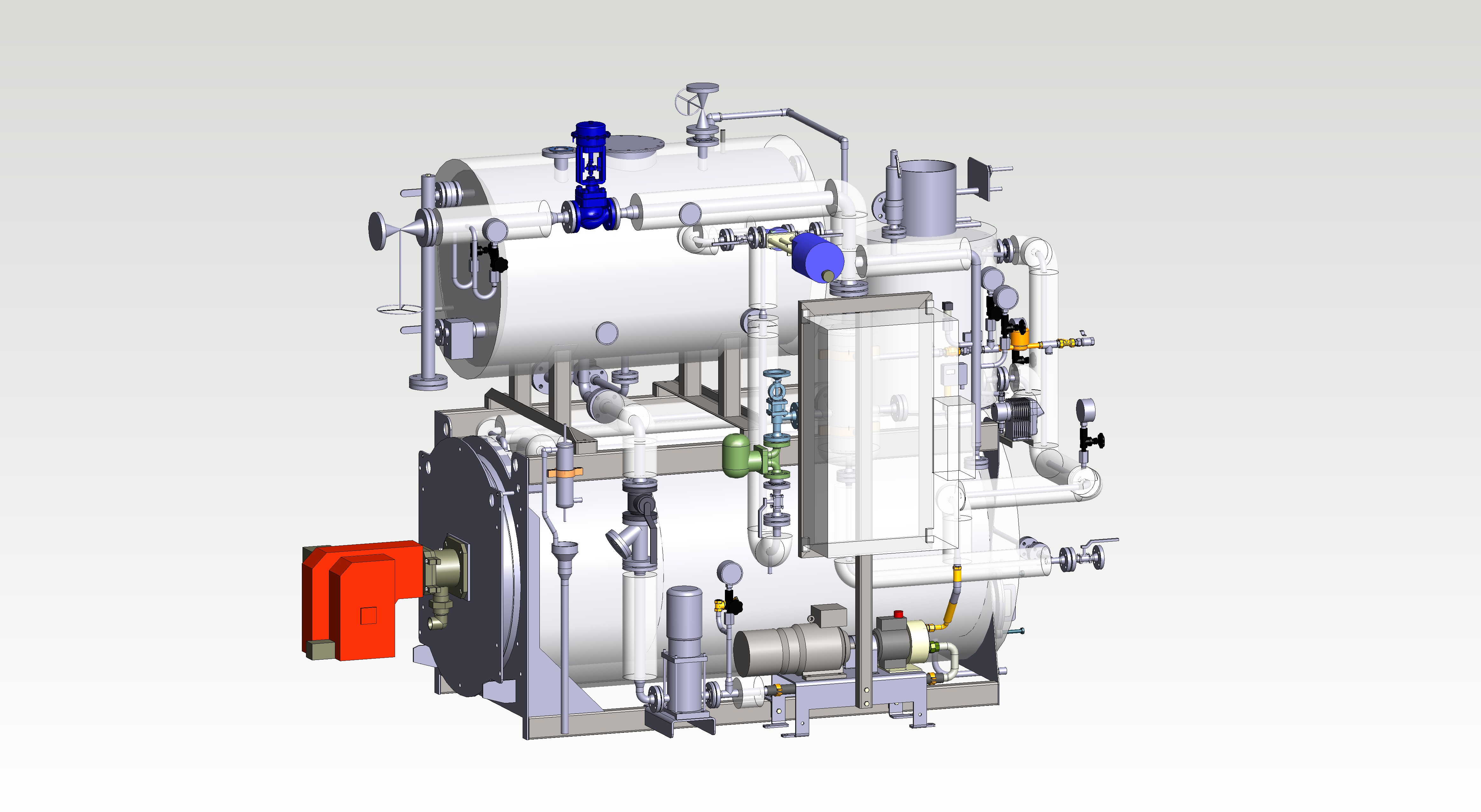

The best example of Steamrator`s wide experience is our steam generators. We provide fully automated systems in a range from 0,18 to 3,5 MW. The steam generators package is delivered built in a frame, tested and ready for installation eater in existing boiler house or it can be delivered in our exclusive thermally insulated steel framed container.
There can be several reasons for choosing a steam generator. Steam generators are very fast starting up, this allows you to turn off the boiler when there are no need for steam, saving both energy and environment.
On smaller models there are no requirements for special education for the staff, the specific seize limit is varies from country to country.
steam generators are an economic alternative to the regular water tube boiler. purchase price, and maintenance coasts are lower.
Pressure part can be replaced in only a few hours, making the generator as new.
- through-flow type steam boiler for heavy industrial use
- start-up time to full capacity approximately 5-7 minutes
- automatic control and safety devices
- possible to connect to an alarm system or remote controel
- frequency converter controls feed water pump rpm
- equipped with a separator type steam dryer
- blow down valve at the bottom of the steam dryer – Can be automated
- steam output can be adjusted to satisfy steam consumption within operating range
Select specific model for more information
| STEAM300 | STEAM500 | STEAM750 | STEAM1000 | STEAM1250 | STEAM1500 | STEAM2000 | STEAM3000 | |
| Length | 2400 mm | 2650 mm | 3350 mm | 3350 mm | 4000 mm | 4800 mm | 4950 mm | 5600 mm |
| Width | 1000 mm | 1500 mm | 1860 mm | 1860 mm | 2000 mm | 2000 mm | 2370 mm | 2500 mm |
| Height | 2200 mm | 2200 mm | 2300 mm | 2650 mm | 2600 mm | 2600 mm | 2600 mm | 2700 mm |
| Steam output* | 300 kg/h | 500 kg/h | 750 kg/h | 1000 kg/h | 1250 kg/h | 1500 kg/h | 2000 kg/h | 3000 kg/h |
| Heat output | 200 kW | 340 kW | 500 kW | 700 kW | 830 kW | 1 MW | 1,34 MW | 2 MW |
| Max. operating pressure | 10, 13 | or 16 bar | ||||||
| Gas burner | Oilon GP-26.10 H | Oilon GP-26.21 H | Oilon GP-50 H | Oilon GP-50 H | Oilon GP-26.10 H | Oilon GP-90 H | Oilon GP-140 H | Oilon GP-140 H |
| Oil burner | Oilon KP 26 H | Oilon KP 50 H | Oilon KP 50 H | Oilon KP 50 H | Oilon KP 26 H | Oilon KP 90 H | Oilon KP 140 H | Oilon KP 140 H |
| Feed waterpump | Hydra-Cell G-10 | Hydra-Cell G-10 | Hydra-Cell G-10 | Hydra-Cell G-10 | Hydra-Cell G-25 | Hydra-Cell G-25 | Hydra-Cell G-25 | Hydra-Cell G-25 |
| Motor of pump | VEM | |||||||
| Frequency converter | Vacon | |||||||
| Control board | 400/50 | V/Hz |
